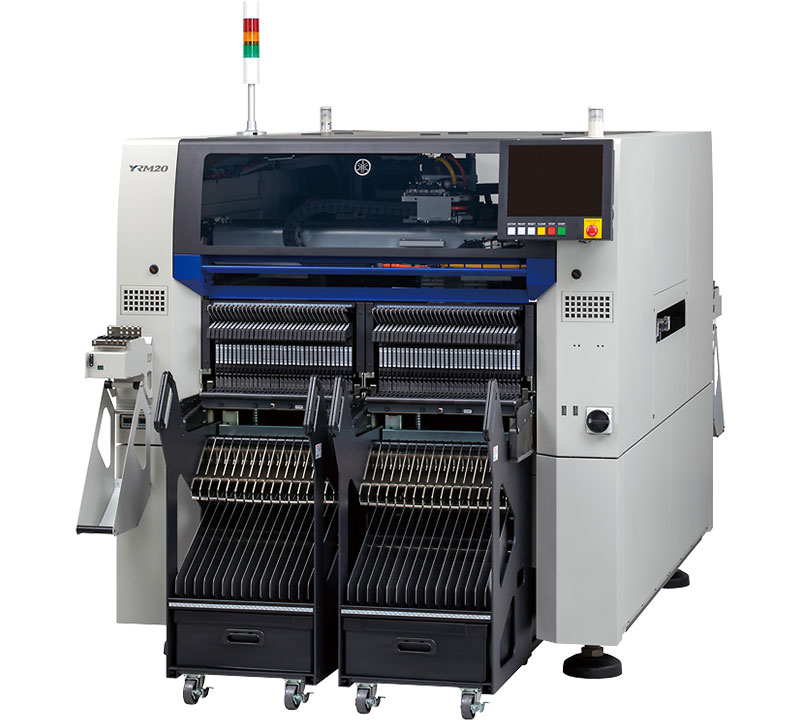

YAMAHA Efficient Dual Rail Mounter YRM20DL
Date:2023-10-24    Hits:845
Adopting a "single mount solution", A dual track SMT machine that achieves high productivity/versatility/substrate corresponding capabilities

1. Adopting a "single mounting head solution", widely applicable to various production,

① A high-speed rotary tower RM mounting head capable of achieving 120000 CPH mounting capacity,② High speed universal inline HM mounting head

③ Inline FM mounting head for irregular components

④ The single mounting head solution does not require replacement of the mounting head and can correspond to 0201mm~large components

2. Efficient production solutions for variable production
① Efficient production of various models

② Dual track transmission of upper limit W330mm substrate
③ Automatic exchange of ejector pin function

④ Automatic nozzle station

3. High precision mounting and stable production of small components
① ± 15 μ High precision mounting with m (Cpk ≥ 1.0)

② Low impact mounting

③ Suction/mounting stabilization

4. Rich functional groups for achieving efficient production

① Non stop tray feeding device eATS30

② Suction nozzle maintenance/feeder maintenance warning function

③ Automatic continuous feeder

④ A visual system that can improve the quality of installation
