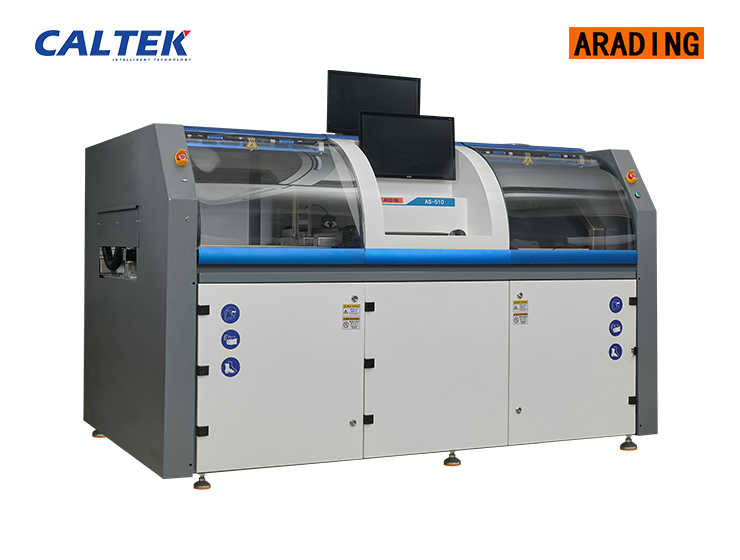

ARADING online large-scale selective wave soldering AS510
Date:2020-11-20    Hits:906
Advantages of each module of the machine 1. Flux spraying unit, saving energy and flux 2. The product preheating unit has fast efficiency and stable temperature 3. Excellent welding unit quality, fast efficiency, and high safety 4. Convenient maintenance and upkeep 5. Easy to operate and learn
阿拉玎AS510选择焊规格参数
基本配置和要求(Basic Configuration)产品运输系统(Transportation System)
外形尺寸(Machin Size)L*W*H= 2450*1850*1600 mm导轨调宽方式(Resizable )软件设定调整宽度,0.5mm喇叭口( Automatic)
工作范围(Working Area)L500 × W580 mmPCB传输方式(Transport)全部3段采用滚轮传输,最大承载15kg(Roll)
电力要求(Electrical)5线 \ AC380V距地高度
(Terrain clearance)
920 ± 25mm
最大消耗电力(Max Power)30A、15KW(基本配置)上下净空
Up and Down Height
上:100 mm   下:55 mm
设备排风(Exhaust pipe)配备2个直径150mm抽风口预热系统(Heater Unit)
助焊剂模块(Flux Unit)下预热系统(Down Heater)短波远红外预热(Infrared Ray)
喷涂范围(Spray Area)喷涂范围为: L 500 × W 580 mm上预热系统(Up Heater)热风循环(Heated Air Circulation)
喷涂精度(Spray Accuracy)±0.20mm,  点、线大小2至8mm可调焊接模块(Soldering Unit)
机器视觉单元(Vision Unit)锡炉材质(Materials)锡炉采用钛合金或不锈钢
可选(Ti or SUS)
视觉装置(Machin Vision)自带CCD和光源装置炉胆最大容量(Sn Capacity)约14KG
视觉软件(Vision Software)视觉辅助编程系统(Assist Software)
自动扫图编程(Scanning Pattern)
焊锡轴系统(Axle Precision)X/Y/Z交流伺服电机控制精度±0.15mm
激光变形测高
(Laser Change Detection)
裸板变形测量,选配(Non-Standard)波峰检测(Soldering Test)最大波峰高5.5mm ,自动校正(Automatic)
